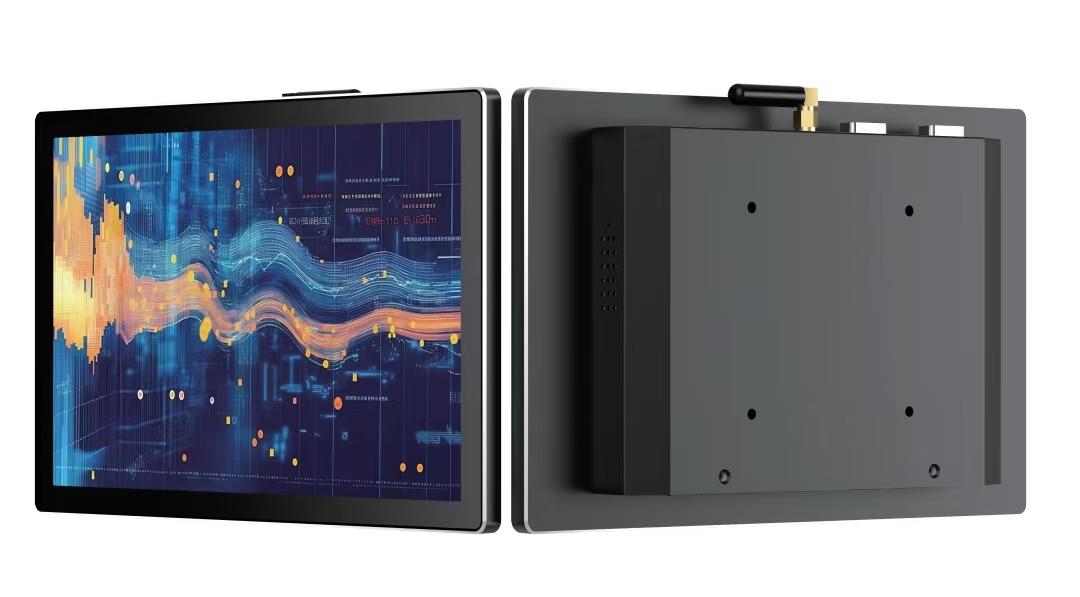

The GK-ALW101 10.1″ Windows PoE AIO touch screen PC is ideally suited for digital signage, information kiosks, advertising, point of sale, hospitality, and control automation applications. The standard configuration runs on Intel J4125 CPU with 8GB RAM/128GB Storage. The 10.1-inch Windows PoE AIO supports a built-in LAN/PoE port that supplies both power and data. The unit also supports WIFI. and Bluetooth. The enclosure is made from Aluminum allow and offers durability with excellent heat dissipation.
The GK-ALW101 10.1″ Windows PoE AIO touch screen PC can be mounted on a desk or on the wall as it supports standard 75x75mm VESA holes allowing you to choose any of the widely available mounts in the market for your specific mounting need. The display unit can be mounted on a desk or on the wall as it supports standard 75x75mm VESA holes allowing you to choose any of the widely available mounts in the market for your specific mounting need.
The standard configuration is fan less supporting Intel J4125 CPU. Optional CPU configuration includes J6412. Certifications include FCC & CE. The power adapters are UL62368 and ETL 60601-1 certified.
Download Datasheet
Features
- Main CPU: J4125 8GB RAM/128GB ROM Optional J6412
- Display : 10.1″ IPS
- Resolution : 1920*1080 pixels
- RAM: DDR3 8GB (standard)
- Flash : 128GB
- OS: Windows 11 Pro
- Bluetooth: Yes
- Camera : Front: 5.0 MP
- PoE: 802.3at
- VESA: 75x75mm
- Installation Options: Wall Mount ( Inwall and on the wall ), desk mount.
Optional
- OEM Logo/Branding
Specifications
| CPU | Intel J4125 Standard. J6412 optional | |
| Processor speed 2.1 GHz | ||
| GPU | Quad core Mali 400 | |
| Display | 10.1″ LG IPS Screen 1920*1080 16:9 | |
| Touch panel | Capacitive Touch Panel | |
| RAM | 8GB DDR3 | |
| Storage | 128GB Nand flash | |
| OS | Windows 10 | |
| Network | Wireless LAN 802.11 b/g/n | |
| Bluetooth 4.0 | ||
| 10/100 Ethernet RJ45
Supports PoE |
||
| 3G (supports external 3G Dongle) | ||
| Audio | Built-in stereo speaker 2*3W
Front microphone |
|
| USB | USB Hosts x 3 | |
| Camera | 5MP front | |
| HDMI | HDMI 1.4a | |
| Office Software | WORD, EXCEL, POWERPOINT, PDF, TXT | |
| Audio Player | Support 1080P H.264, VP8, RV, WMV, AVS, H.263, MPEG4 | |
| Photo | JPG, BMP, GIF | |
| E-Book | Support | |
| I/O Ports | ||
| USB HOST port | 3 | |
| Earphone jack | 1 | |
| DC Jack | 1 | |
| PoE/RJ45 | 1 | |
| Micro SD card slot | 1 | |
| Power | DC In | |
| In/Output | Input: AC100-240V 50-60Hz | |
| Output: 12V 5A | ||

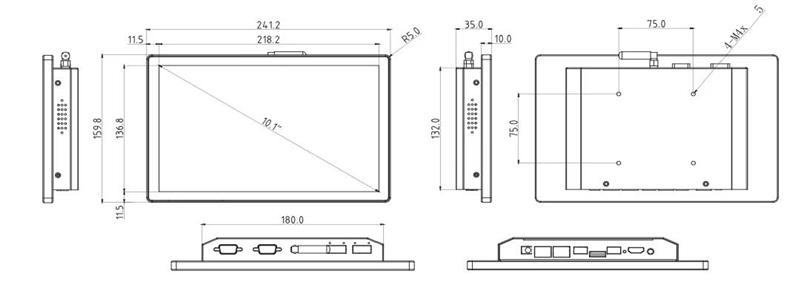

| Dimension | 242.9*189.8*9mm | |
| Accessories | High speed USB 2.0 cable | |
| User manual | ||
| Wall charger (100-240V 50-60Hz 5V 2A) | ||
| USB adaptor (.UL62368 and ETL 60601-1) | ||
