The GK-YCSM04 4-inch Android Smart Home Automation control panel is a flush wall mounted touch Screen Display that is ideal for use as a controller for home automation systems, entertainment devices, HVAC and building automation systems. The in-wall flush mount Android 13 touch screen with built-in POE has a small foot print and its slim profile makes it an ideal device when an unobtrusive, stylish user interface is needed. This tablet supports Google Play allowing you to download various home automation apps.
Download Datasheet
Highlights:
- 4’’ IPS 480*480 capacitive touch screen
- RAM 2G, ROM 8G

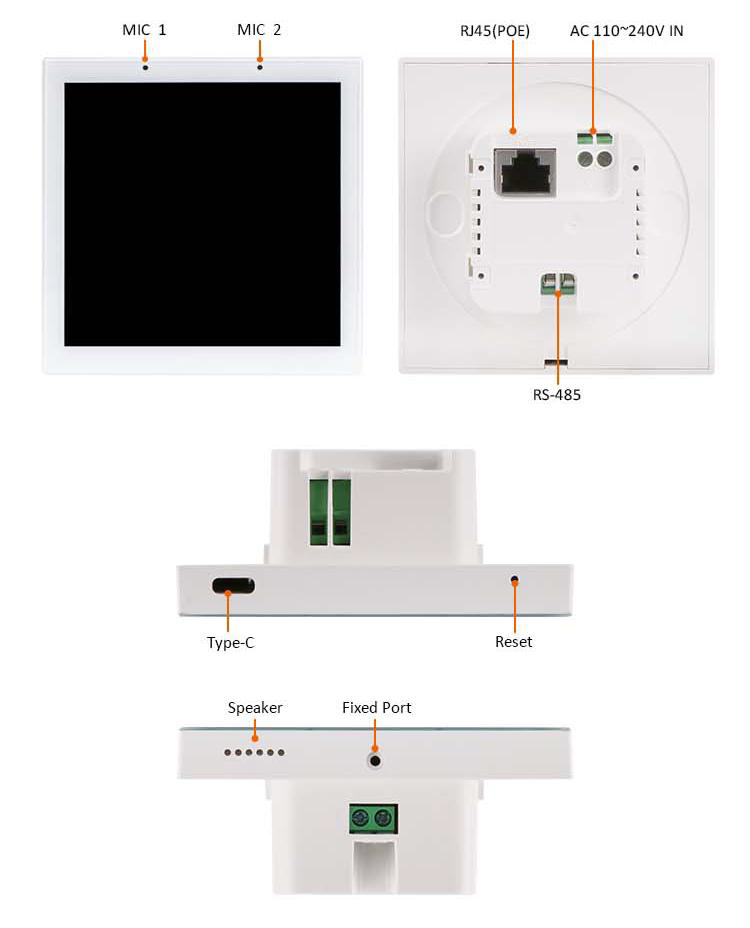

- Comes with RJ45 port, RS485 serial port, WiFi, Bluetooth, AUX

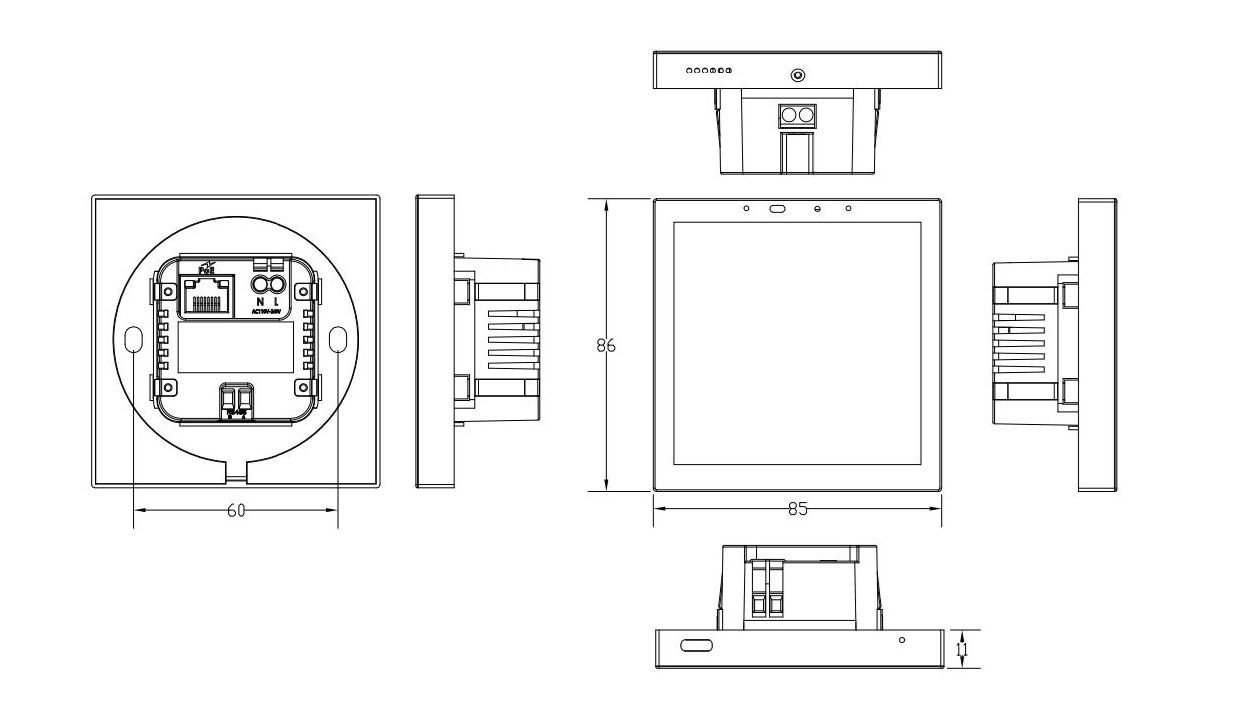

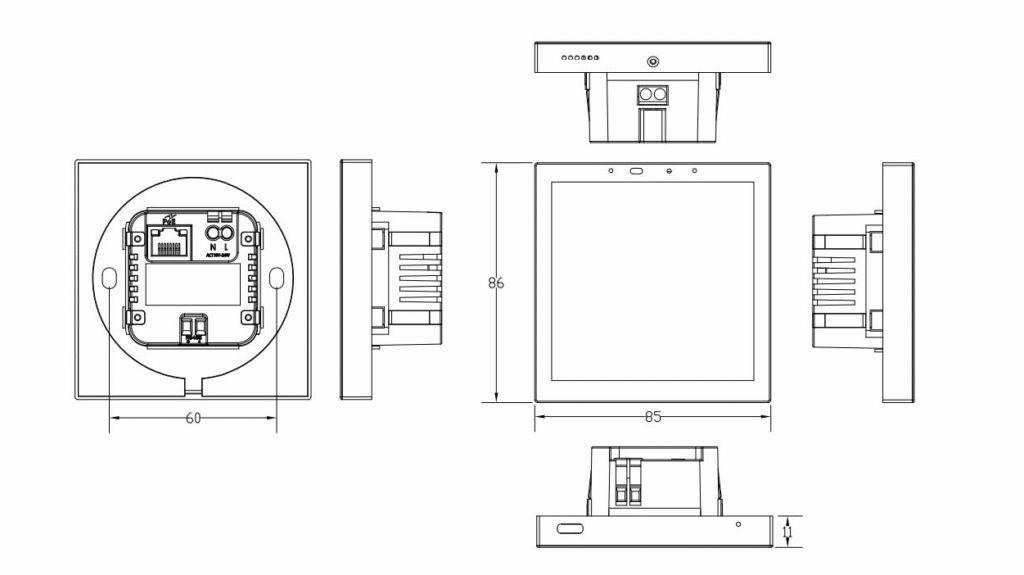

- Dimension: 86.6mm*86.6mm*35.3mm
- Installed with type 86 wall switch socket
- Supports Zigbee protocol optional
- Supports POE 802.3AT
Geekland offer customizations for this 4-inch Android Smart Home Automation control panel and for most of our Android Tablets and Windows Panel PCs, which can come pre-installed with your bootup applications from our factories. We also provide Private Branding and White Labeling services. Wholesale pricing is available for volume orders, and we can accommodate PO/Net terms for qualified buyers.
Our 4-inch Android Smart Home Automation control panel wall mounted touch screens can be designed to meet customer requirements. While our off-the-shelf systems support most use cases with minimal configuration, we can custom-build solutions to meet specific needs. Let us know how we can assist you!!
SPECIFICATIONS
| System
4 inch Smart Home Automation Wall Mounted Touch Screen |
Dimension | 86.6mm*86.6mm*35.3mm |
| Display size | 4 inch | |
| CPU | Quad-Core ARM Cortex-A55,up to 1.8GHz | |
| System | Android 13 | |
| Resolution | 480*480 | |
| Touch Panel | 5 points capacitive touch panel, IPS | |
| RAM | 2G | |
| ROM | 32G | |
| Network | WIFI | 802.11b/g/n |
| Bluetooth | Bluetooth 5.2 | |
| Ethernet | 10M/100M | |
| I/O ports | RJ45 | Ethernet interface input (RJ-45 cable) , POE Option |
| SD Card | Yes | |
| USB | Micro USB | |
| RS485 | RS485*1 | |
| Serial port | Serial port *2 | |
| Doorbell port | Support | |
| Alarm interface | Support | |
| AUX | Build in | |
| Zigbee | Support | |
| Power | POE (802.1af) | |
| Features | Microphone | build in , AI support |
| AI | 5 meters Far field interaction | |
| Cooling method | Air-Cooled | |
| Media plays | Video | MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB |
| Audio | MP3 / WMA / WAV / AAC / FLAC / OGG | |
| Entertainment | Video / Movie / Music / FM online | |
| Others | Camera | No camera |
| Battery | NO | |
| Mount | wall mounted / in wall & embedded | |
| Color | Black | |
| Power consumption | 2x10W MAX | |
| Physical button | Power on/ off | |
| Working temperature | -10°~60° | |
| Language | Support multi-languages |
