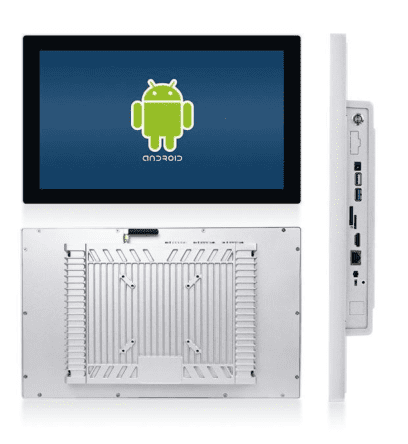

The GK-AL215-KDS 21.5-inch Android KDS touchscreen PC is designed for restaurant point of sale (POS) and kitchen display systems (KDS). It features a built-in RJ45 port for Power over Ethernet (POE) and Ethernet LAN connections, along with dual-band WiFi and Bluetooth for wireless connectivity. You can use POE to deliver both data and power to the unit, or alternatively, power it using the provided AC adapter and connect via Ethernet LAN or WiFi.
Constructed with an aluminum alloy casing, the GK-AL156-KDS offers excellent anti-corrosive properties and heat dissipation, making it suitable for hot kitchen environments. The front of the unit is IP65-rated to withstand grease and oils. The touchscreen supports Android 12, with an optional upgrade to Android 13 on the RK3588 CPU for enhanced performance.
You can install various KDS apps such as Fresh KDS, Square KDS from Google Play Store.
MDMs supported include:
For OEMs, this model can be customized and branded/white labeled. We can create a custom ROM with your application that can be launched in kiosk mode or boot straight into the app.
This GK-AL215 21.5-inch Android KDS touchscreen supports 100×100 VESA. You can use any commercially available VESA mounts for mounting the unit on wall, desktop or on ceiling.
Call us or email us [email protected] for OEM inquiries, customization and wholesale pricing.
Features
- Main CPU : RK3588 Octa-core @ 2.4 GHz
- Display : 21.5″ (inch) IPS
- Resolution : 1920*1080 pixels (Optically Bonded display)
- RAM : DDR3 4GB
- Flash : 32GB
- OS : Android 12
- Bluetooth : Yes
- Mini USB OTG / USB Host 2.0
- Camera : Front: 5.0 MP (optional)
- PoE: 802.3 at
- VESA: 100x100mm
- Installation Options: Wall Mount ( In-wall and on-wall ), desk mount, pole mount, shelf mount
- Case: Aluminum Case offers excellent heat dissipation
Optional OEM services
- Kiosk Mode
- Auto-start Application
- OEM Logo/Branding
SPECIFICATIONS
| SKU | GK-AL215-KDS-3588 |
| CPU | RK3588 Octa Core CPU @ 2.2 GHz |
| RAM | 4GB DDR3
8GB DDR3 Optional for RK3588 |
| ROM | 32GB |
| GPU | Quad core Mali 400 |
| OS | Android 12 RK3588 CPU |
| Screen Size/Type | 21.5″ LG IPS Optically bonded |
| Touch panel | Capacitive |
| Resolution | 1920×1080 |
| AUDIO | Built-in stereo speaker 2 X 3W |
| SD SLOT | 1 |
| HDMI | 1.4a |
| USB | Mini USB OTG / USB Host 2.0 |
| EAR JACK / MIC | 1 |
| DC POWER JACK | 1 |
| RJ-45 | 10/100 Ethernet RJ45 |
| PoE (Power Over Ethernet) | 802.3at |
| WIFI | Wireless LAN 802.11 b/g/n dual band |
| Bluetooth | 4.0 |
| Camera | Front: 5.0 MP |
| Mounting Options | VESA: 100x100mm
Wall Mount ( In-wall and on-wall ), Desk Mount, Pole Mount, Shelf Mount, Celling mount |
| Item Dimensions | 528mmx319mmx59mm |
| Power Supply / Charger | Wall charger (100-240V 50-60Hz 12v 2A) |
| Warranty | 3 years |
Datasheet Download
Dimensions
