IP65 - Front only Waterproof Windows Panel PCs

NXT-QD Model Series

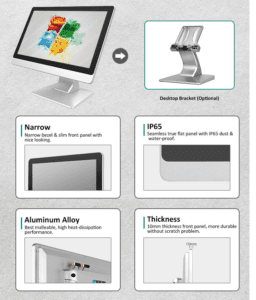

These models come with a wide selection of industrial motherboards with customizable options to fit various needs. Our solutions come in multiple sizes, from 7 to 21.5 inches, and feature a fanless, fully enclosed design with a durable aluminum alloy structure.

These motherboards support various installation methods, offer low power consumption and great scalability, and are highly practical and EMC-compatible. They are ideal for applications in industrial control, military, communications, power, and networking.

Product size	Non-touch	Capacitive Touch	Resistive Touch	Resolution	Screen Scale	Brightness	Contrast ratio	Viewing Angle
7″	NXT70F-QD2	NXT70FC-QD2	NXT70FR-QD2	1024*600	16:9	500cd/m²	500:1	75/75/70/75 (L/R/U/D)
8″	NXT80F-QD2	NXT80FC-QD2	NXT80FR-QD2	1024*768	4:3	800cd/m²	800:1	85/85/85/85 (L/R/U/D)
10.1″	NXT101F-QD2	NXT104FC-QD2	NXT104FR-QD2	800*1280	16:10	300cd/m²	1000:1	85/85/85/85 (L/R/U/D)
10.4″	NXT104F-QD2	NXT104FC-QD2	NXT104FR-QD2	1024*768	4:3	400cd/m²	1000:1	80/80/80/80 (L/R/U/D)
11.6″	NXT116F-QD2	NXT116FC-QD2	NXT116FR-QD2	1920*1080	16:9	300cd/m²	1000:1	85/85/85/85 (L/R/U/D)
12″	NXT12F-S-QD2	NXT12FC-S-QD2	NXT12FR-S-QD2	1024*768	4:3	500cd/m²	1000:1	85/85/85/85 (L/R/U/D)
15″	NXT15F-QD2	NXT15FC-QD2	NXT15FR-QD2	1024*768	4:3	300cd/m²	1000:1	89/89/89/89 (L/R/U/D)
15.6″	NXT156F-QD2	NXT156FC-QD2	NXT156FR-QD2	1920*1080	16:9	300cd/m²	800:1	85/85/85/85 (L/R/U/D)
17″	NXT17F-QD2	NXT17FC-QD2	NXT17FR-QD2	1280*1024	5:4	300cd/m²	1000:1	85/85/80/70 (L/R/U/D)
17.3″	NXT173F-QD2	NXT173FC-QD2	NXT173FR-QD2	1920*1080	16:9	300cd/m²	600:1	80/80/60/80 (L/R/U/D)
19″	NXT19F-S-QD2	NXT19FC-S-QD2	NXT19FR-S-QD2	1280*1024	5:4	300cd/m²	1000:1	85/85/80/80 (L/R/U/D)
19.1″	NXT19F-W-QD2	NXT19FC-W-QD2	NXT19FR-W-QD2	1440*900	16:10	300cd/m²	1000:1	80/80/80/80 (L/R/U/D)
21.5″	NXT215F-QD2	NXT215FC-QD2	NXT215FR-QD2	1920*1080	16:9	300cd/m²	1000:1	89/89/89/89 (L/R/U/D)

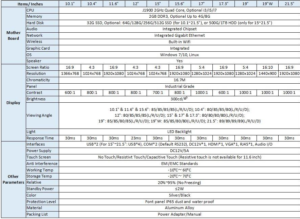

SPECIFICATIONS

Configuration

CPU

Intel Celeron J6412, 4-core/4-wire, 2.00 GHz max RPM 2.6GHz (Standard)

Optional Intel I3, I5, I7

GPU

Intel UHD Graphics 16 EUs

Memory/RAM

8GB DDR4 (Supports up to 16GB)

Storage

256GB SSD (Optional 256GB~512GB/1T~4T SSD, 1T/2T HDD)

Operating System

WIN10/11, Ubuntu/Centos/Redhat/Debian

Video Card

Integrated HD Graphic display core

Wi-Fi

Dual Band 2.4GHz+5GHz

Bluetooth

BT4.0 (Optional)

Touch Parameter

Capacitive Touch

Projection capacitive touch, 10-point multi touch Touch object: hand or capacitive touch pen Light transmission: ≥88%
Controller: USB ( COM customized)

Resistive Touch

Resistive touch, Single point Touch object: finger or stylus Light transmission: ≥78%
Controller: USB ( COM customized)

Non-touch

Transmittance: ≥92%

Reliability Parameter

Working temperature

-10°C~60°C ( -20°C~70°C can be customized)

Storage temperature

-20 ° C~70 ° C

Relative humidity

95% non-Condensing

Other Parameter

Power input

12V-36V power input

Power adapter

24V/2.5A

Fuselage Properties

Body material: aluminum alloy, body color: classic black, technical silver

Warranty policy

Three years (one year free warranty)

Installation method

Support embedded, wall mounted, desktop, louver, cantilever, boom and other installation methods

Interface Parameter

PowerSW

1*PowerSW

Power interface

1*Threaded DC connector (Diameter 5.5*2.5mm)

Phoenix terminal

1*12P Phoenix terminal (Power supply/RS232*1/RS485*1/GPIO*5)

USB

2*USB 3.0, 2*USB 2.0

Ethernet

2*LAN, 10M/100M/1000M adaptive Ethernet

HDMI

1*HDMI, Support HDMI data output, maximum support 4K

SIM

1*SIM, SIM card interface standard interface supports various formats (depending on 3G / 4G module)

VGA

1*VGA

AUDIO

1*Audio I/O, support audio input and output, headphone holder: 3.5mm standard interface

Speaker

Serial port

1*COM (The default is RS232, optional RS485/RS422)

Wi-Fi antenna

2*Wi-Fi antenna

Grounding

Support (1*GND)
