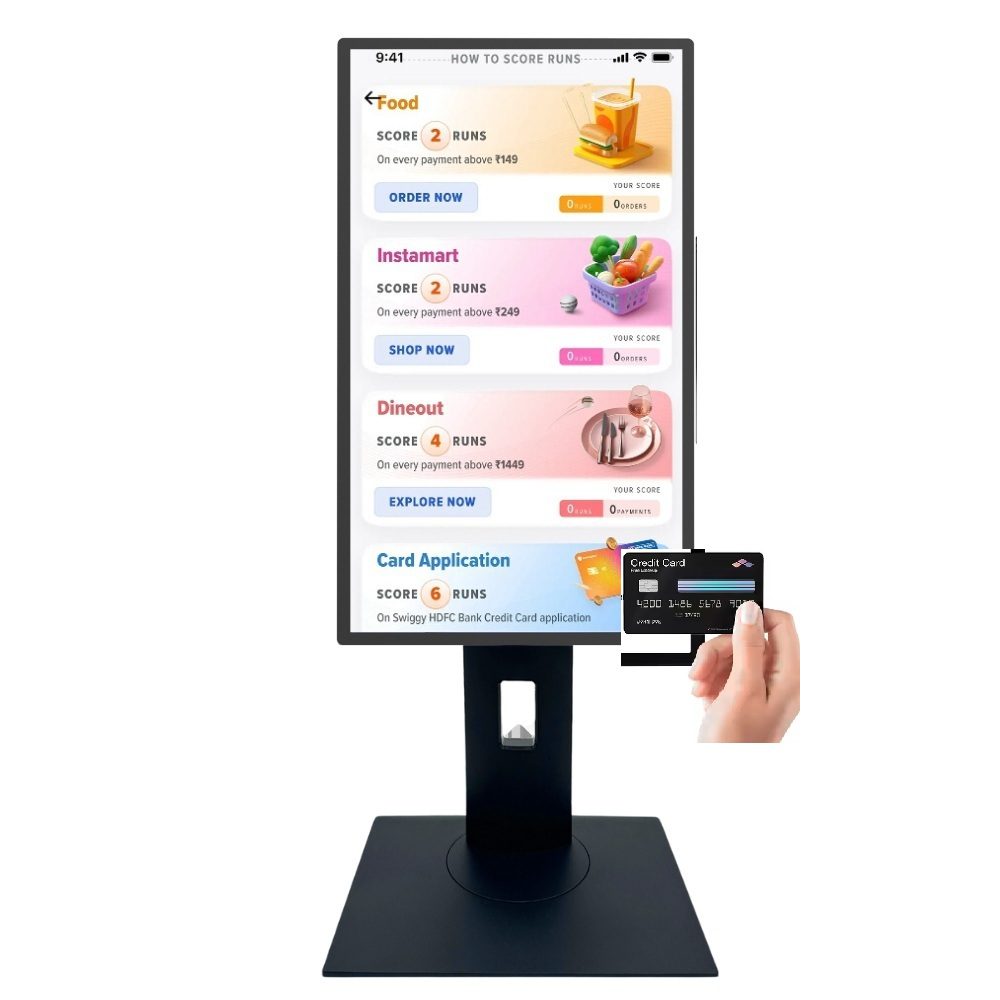

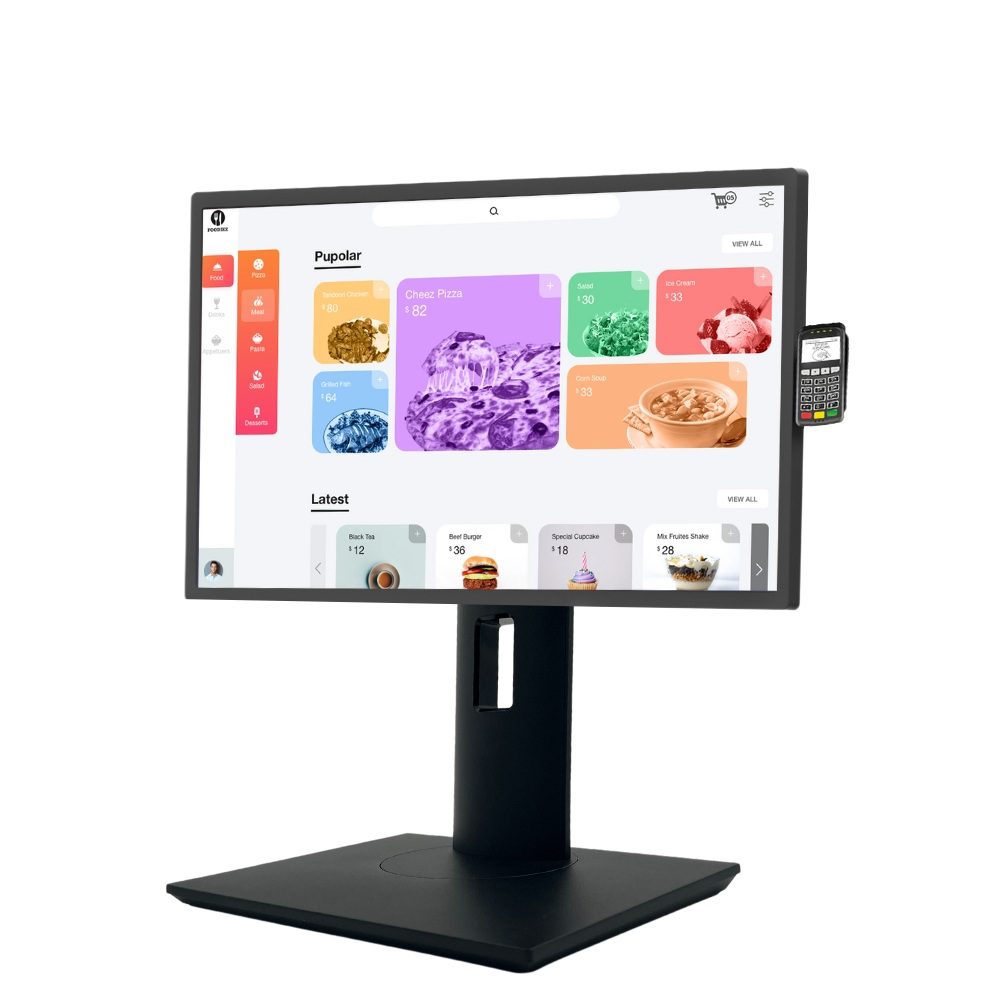

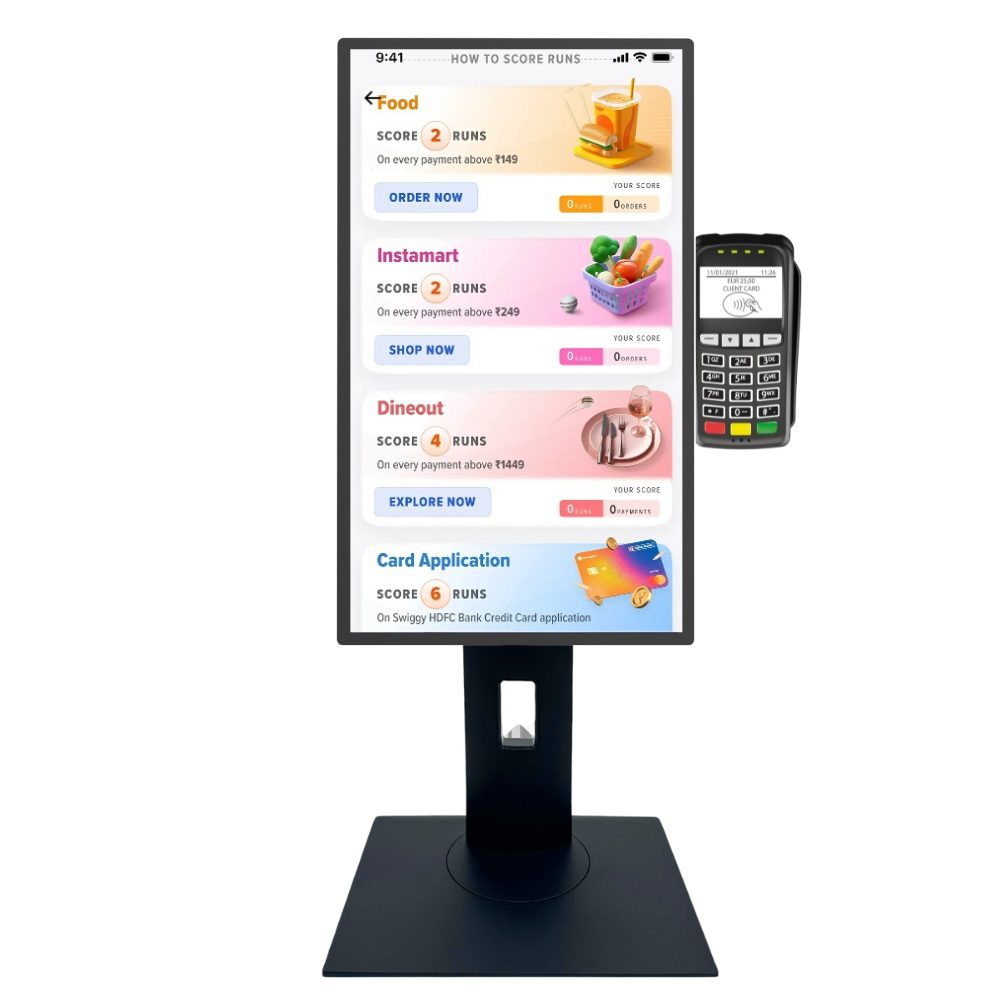

GKWF1585TWK 15.6-inch Android Touchscreen Kiosk with NFC for Self-Service POS Applications
The GKWF1585TWK 15.6-inch Android Touchscreen Kiosk combines cutting-edge technology with a sleek narrow-bezel design, making it ideal for applications such as interactive touchscreen self-service payment kiosks, POS kiosks and more. Supports built-in NFC (13.56Mhz) card reader for contactless cards and payments. Perfect for self-service kiosks. Add printer, barcode scanner and/or payment terminal.
Whether you’re running a bustling QSR, a boutique retail shop, or a high-traffic medical clinic, this 15.6-inch Android 13 kiosk streamlines operations, reduces wait times, and puts the power of choice directly into your customers’ hands.
- Sleek Aesthetics: A stunning white, narrow-bezel design that fits perfectly into modern interiors.
- Intuitive Interface: Vibrant 1080p IPS display with 10-point capacitive touch for a smartphone-like feel.
- Ready for Action: Built-in NFC (13.56Mhz) for instant contactless payments and loyalty card integration.
You can power the device with DC in 12V using the included DC Adapter and use the RJ45 port for ethernet LAN or WIFI for data connection. POE Support is available as an option.
Advanced Connectivity Options
Equipped with a built-in RJ45 port for hard wired network connect, the touch screen display supports Wi-Fi 6 and Bluetooth connectivity for versatile wireless solutions. The device’s robust connectivity ensures seamless integration into a wide range of environments.
Powered by Android OS
Running on a full Android operating system with GMS support and Google Play Store access, this 15.6-inch Android 13 Touch Screen Display allows you to download and run thousands of apps.
Kiosk Mode Operation & Remote Management
You can enable kiosk mode operation by locking down to a specific application or lock down web browser to specific URL. You can use third party applications such as Kiosk Lockdown, Fully Kiosk that provide kiosk model operation. More comprehensive management of the devices including corporate enrollment and remote management can be achieved via MDMs like AirDroid, ManageEngine, Esper, Hexnode, Meraki and Intune.
Read about our Kiosk Mode and Remote Management solution.
Superior Display and Durability
The optically bonded 15.6-inch IPS touchscreen delivers vivid 1920×1080 resolution and an impressive 350nits brightness, ensuring readability in various lighting conditions. The front panel is optically bonded with a narrow bezel providing much greater real-estate for display and interactive touch.
Flexible Mounting and Power Options
The device is VESA 75×75 compatible, allowing for effortless installation on walls or countertops. Power options include POE (802.3at/af) and 12V DC input for added flexibility.
| Mount Type | Models | |
| Wall Mounted |  |
|

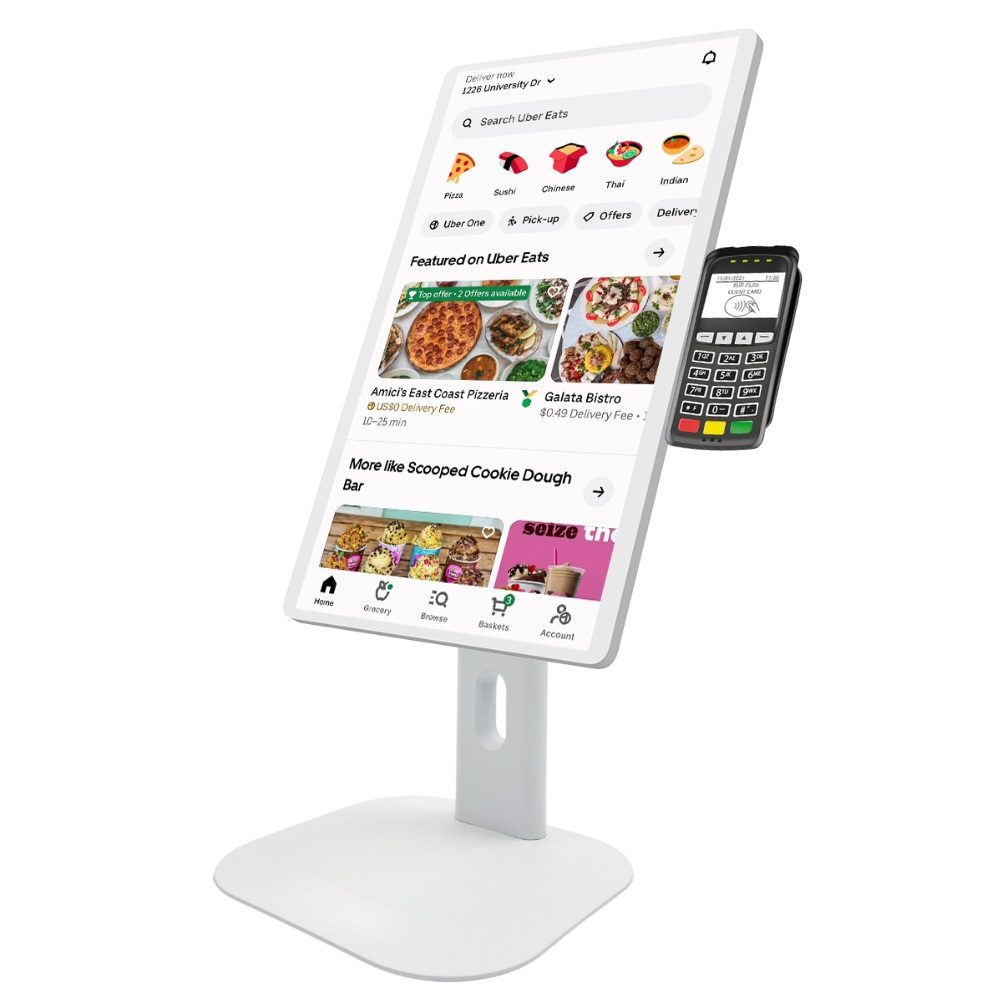

| Countertop Mounted |  |
|
| Floor Mount
|
 |
Industry Applications
As an open Android based system, you can install a variety of apps from Google Play that address your specific application. Typical applications for this kiosk include:
- Retail & POS: Reduce checkout lines and increase average order value with upsell prompts and easy self-checkout.
- Restaurants & KDS: Perfect for self-ordering stations or rugged Kitchen Display Systems (KDS) to keep the back-of-house synchronized.
- Healthcare: Speed up patient check-ins and provide interactive wayfinding or medical information.
- Corporate & Hospitality: Manage visitors, book meeting rooms, or offer 24/7 self-service hotel check-ins.
Why Choose the GKWF1585TWK?
| High-Performance Hardware | Versatile Connectivity | Commercial Grade |
| Powered by the Rockchip 3576 Octa-Core processor and Android 13 and higher, ensuring your apps run smoothly without lag. | Equipped with Wi-Fi 6, Bluetooth 5.3, and a Gigabit RJ45 port. Optional PoE for single-cable power and data. | Durable ABS construction with VESA 75×75 mounting for wall, desk, or countertop installation. |
Features
- Display: 15.6” IPS, 1920×1080 Resolution, 350 nits brightness.
- Memory: 4GB RAM + 32GB Flash (expandable via Micro SD).
- Camera: Integrated 5.0MP front-facing camera for video conferencing or security.
- Audio: Dual 5W stereo speakers with noise-canceling microphones.
- Peripheral Support: 3x USB ports to easily connect printers, barcode scanners, and payment terminals.
Optional
- Kiosk Mode
- Auto-start Application
- OEM Logo/Branding
Download Datasheet
Specifications
| CPU | RK3576Quad core cortex A55+Quad core cortex A76， | |
| Processor speed 2.4 GHz | ||
| GPU | Quad core Mali 400 | |
| Display | 15.6′ LG IPS Screen 1920*1080 16:9 | |
| Touch panel | Capacitive Touch Panel | |
| RAM | 4GB DDR3 | |
| Storage | Built-in 32 GB Nand flash | |
| OS | Android 13.0. Android 14 is also available ( Contact us for available OS versions) | |
| Network | IEEE 802.11b/g/n/a/ac/ax (Wi-Fi 6 ) with Mu-MIMO standard | |
| Bluetooth 5.3 | ||
| 10/100 /1000M Ethernet RJ45
Supports PoE (optional) |
||
| 4G (supports external 4G Dongle) | ||
| Audio | Built-in stereo speaker 4Ω*5W*2
Standard Quad Microphone , Support noise reduction and echo cancellation |
|
| USB | USB Hosts x 3, 1x USB 2.0, 1xType C | |
| Camera | MIPI 8.0MP Camera front | |
| HDMI IN | Support 800*600,1024*768,1280*720,1280*800,1280*1024,1366*768,1600*900,1920*1080,3840*2160, etc | |
| Office Software | WORD, EXCEL, POWERPOINT, PDF, TXT | |
| Audio Player | Support 1080P H.264, VP8, RV, WMV, AVS, H.263, MPEG4 | |
| Photo | JPG, BMP, GIF | |
| VESA | 75×75 | |
| Card Reader | Built-in NFC 13.56Mhz Mifare card reader | |
| I/O Ports | USB 2.0 | 1 |
| USB 3.0 | 1 | |
| Earphone jack | 1 | |
| DC Jack | 1 | |
| RJ45 | 1 | |
| Micro SD card slot | 1 | |
| Power | DC In | |
| In/Output | Input: AC100-240V 50-60Hz | |
| Output: 12V 2A
Optional POE |
||
| Applications | Browser, office software, games, Video Player/Audio Player | |
| Skype video chat, MSN, Email, Calculator, Calendar etc. | ||
| Audio/Video/Game | Support AVI, RM, RMVB, MKV, WMV, MOV | |
| Support 1080P full HD movie-play | ||
| Support different 3D games | ||
| Dimension | 344*194.8*24.4mm | |
| Case | Plastic ABS | |
| Accessories | High speed USB 2.0 cable | |
| User manual | ||
| Wall charger (100-240V 50-60Hz 12V 2A) | ||
| USB adaptor | ||
