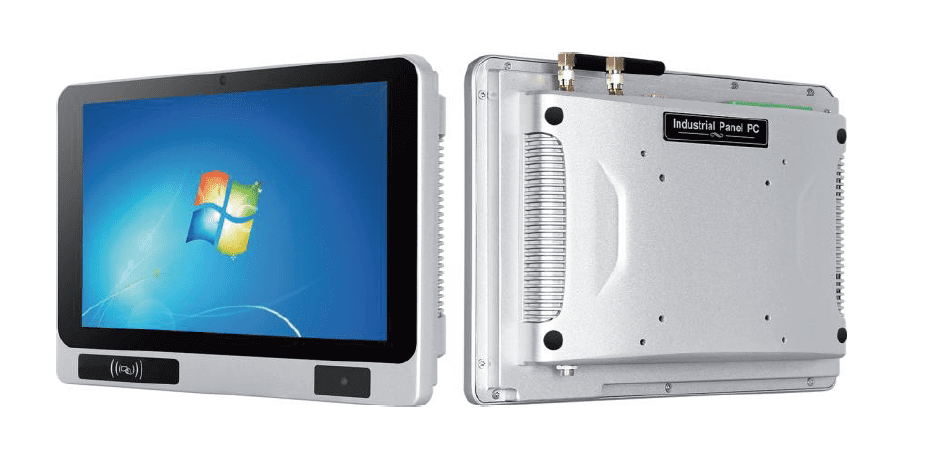

GKNWP1014 10-inch IP65 Windows Industrial Panel PC with RFID and Barcode Scanner, Wide Voltage Wide Temperature

The GKNWP1014 10-inch IP65 Windows Industrial Panel PC is the definitive solution for industries where durability and precision are non-negotiable. Encased in a rugged aluminum alloy or optional stainless-steel chassis, this fanless, sealed powerhouse is engineered to thrive in harsh operational conditions—from high-traffic retail floors to the extreme temperatures of manufacturing plants. At its core, the high-efficiency Intel Celeron J6412 processor delivers reliable Windows 11 performance, while the vibrant 1024×768 (optional 1366×768) display provides a crystal-clear interface for critical data.

What truly sets the GKNWP1014 apart is its specialized integration for secure and efficient workflows:

• Advanced Authentication: An integrated front RFID reader allows for instantaneous user login and secure application access.

• Integrated Data Capture: The built-in 1D/2D barcode scanner streamlines inventory management and product lookups directly from the station.

• Industrial Resilience: Rated IP65 for dust and water protection and capable of operating in temperatures as low as -20°C to 70°C, it is built for 24/7 reliability.

With flexible mounting options—including wall, embedded, and VESA—and a maintenance-free design, the GKNWP1014 is more than just a computer; it is a versatile command hub designed to increase efficiency in building automation, interactive kiosks, and advanced control systems.

Technical Highlights: GKNWP1014 10-inch Industrial Panel PC

The GKNWP1014 is engineered for precision, security, and extreme durability. Below are the key technical advantages that make this IP65-rated system a leader in industrial and retail automation.

Ruggedized & Resilient Architecture

• IP65-Rated Protection: Fully sealed front bezel protects against dust, moisture, and water jets, ideal for wash-down environments.

• Industrial Chassis: Choose between a lightweight, durable Aluminum Alloy or a heavy-duty Stainless Steel enclosure for maximum impact resistance.

• Fanless Cooling: A zero-moving-part design ensures silent, maintenance-free 24/7 operation and prevents the intake of airborne contaminants.

• Extreme Temperature Range: Reliable performance from -10°C to 60°C, with an extended range option of -20°C to 70°C for cold storage or outdoor applications.

Specialized Data Capture & Security

• Integrated Front RFID: Streamlines secure user authentication and access control with a quick-tap interface.

• Built-in 1D/2D Barcode Scanner: High-performance scanning for inventory management, product lookups, and retail checkout applications.

 High-Performance Core

• Processing Power: Intel Celeron J6412 (Elkhart Lake) processor provides the perfect balance of speed and power efficiency.

• Expandable Memory: Ships with 4GB DDR4, expandable up to 16GB to handle resource-heavy industrial software.

• Solid State Storage: Fast 64GB SSD standard, with capacities available up to 2TB for local data logging and media storage.

Versatile Connectivity & Display

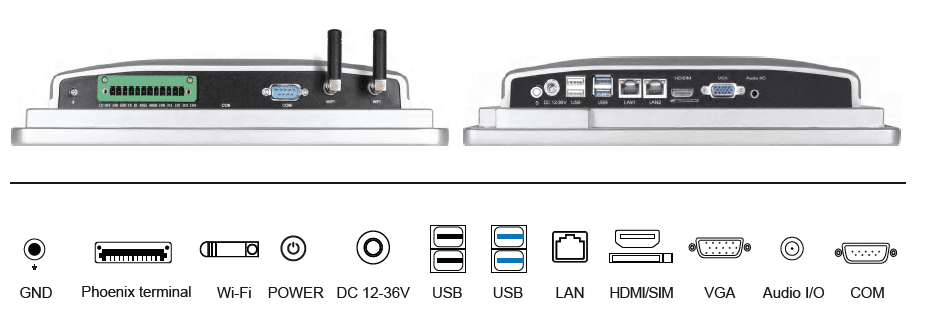

• Rich I/O Suite: Includes high-speed LAN, HDMI, multiple USB ports, and Serial (COM) ports for legacy and modern hardware integration.

• Display Options: High-clarity 10.1” display with standard 1024×768 or optional 1366×768 resolution.

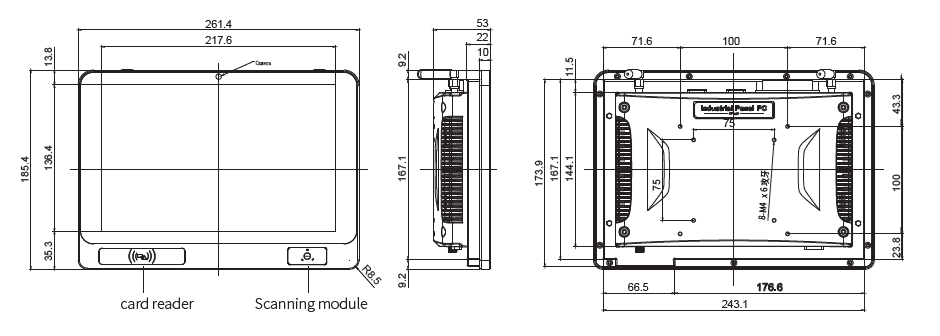

• Flexible Mounting: Supports VESA 75/100, Wall Mount, Embedded (Panel Mount), or Desktop stand configurations.

Download Datasheet

Specifications

Typical Use Cases

• Industrial automation & control systems

• Manufacturing execution interfaces

• Warehouse inventory and logistics terminals

• Interactive kiosks & POS stations

• Building automation & access control systems
