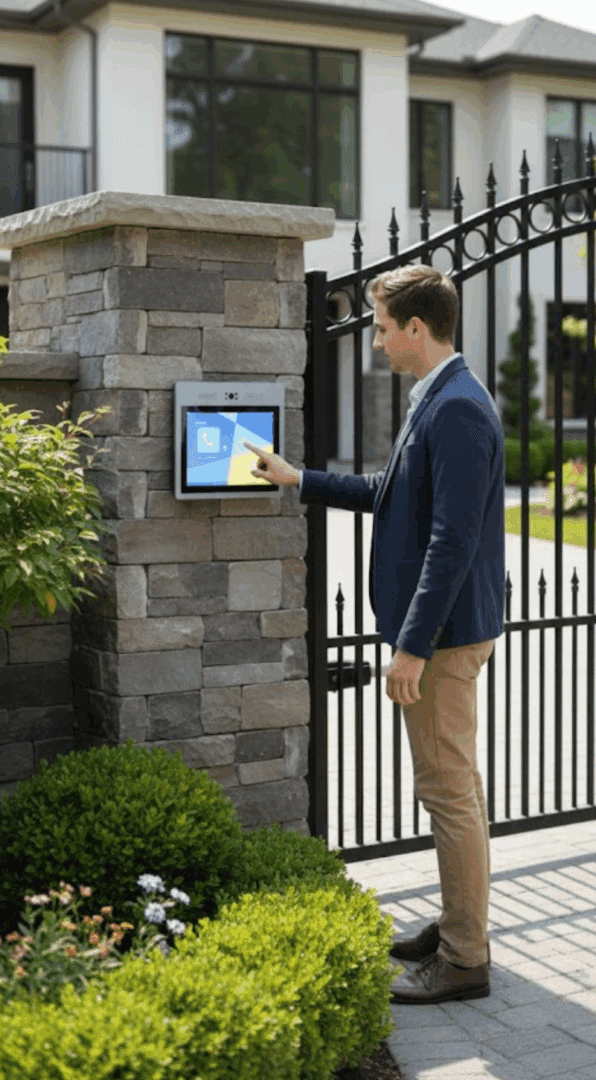

The 10.1-inch PoE Android touch screen outdoor intercom & gate access controller running Android 11 has VESA 75x75mm holes at the back and can be mounted on the surface or desk with any standard mounts.
It supports POE 802.3 AT/AF standard for both data and power input. You can also power the device with DC in 12V,5A using the included DC Adapter and use the RJ45 port for ethernet LAN or WIFI for data connection.
The unit supports Google Play that allows you to download any app. Support is also available for OEMs and security integrators who have a need to install their app to operate in single app kiosk mode.
The 10.1-inch PoE Android touch screen outdoor intercom supports front camera with optional night vision. front water proof speakers and mic.
The GKIND101IB 10.1-inch PoE Android touch screen outdoor intercom interfaces include 2xRelay support for door or gate access.
Features
- 10.1-inch IPS touchscreen 1280×800 1000 nits
- Quad core Android 11.0 OS Standard)
- RAM: 4GB standard
- ROM: 32GB
- PoE support (802.3at / af)
- DC in 12V / 3A
- WIFI / BT
- 2 front speakers + Microphone
- 2MP Night vision camera
- 2xUSB, 2x Relay, 1xRJ45
- IP65 Rated
- VESA mounting (surface mount only)
- Aluminum Anti corrosive case
- Vandal proof design with security lock
- MDM support – AirDroid for remote management
Download Datasheet
Specifications
| CPU | Quad-Core Cortex™-A7 CPU RK3568(standard)
|
|
| OS | Android 11
|
|
| Memory / Storage Configurations | 4GB DDR3 / 32GB EMMC Flash
|
|
| Display | 10.1-inch LED backlight screen with G+G multi-touch capacitive touch panel | |
| Display Resolution | Resolution:1280×800, Brightness: 1000 nit | |
| Display Brightness | 1000 nits. | |
| Audio | 2 x 2W speaker | |
| Camera | 2MP Night vision camera | |
| Communication | IEEE 802.11a/b/g/n/ac, 2.4GHz and 5GHz WiFi compliant | |
| Bluetooth | Bluetooth V4.0 of 1, 2 and 3 Mbps | |
| Buttons | NA | |
| Mounting | Surface mount VESA 75 x 75 or Flush mount | |
| IO Interfaces | ||
| USB | USB 2.0 x 3 1 USB MINI | |
| DC input | Direct Power: DC 12V5A | |
| RJ45/POE | 1xRJ45/POE Input power 802.3 AT / data | |
| Mechanical & Environment | ||
| Dimensions / Weight | 280mm×237 mm×45.2mm (Standard), 2.7kgs | |
| Protection Class | IP65 | |
| Operating Temperature | -20°C to +70°C | |
| Storage Temperature | -20°C to +80°C | |
| Humidity | 5-95% without condensation | |
| Casing | Aluminum alloy | |
