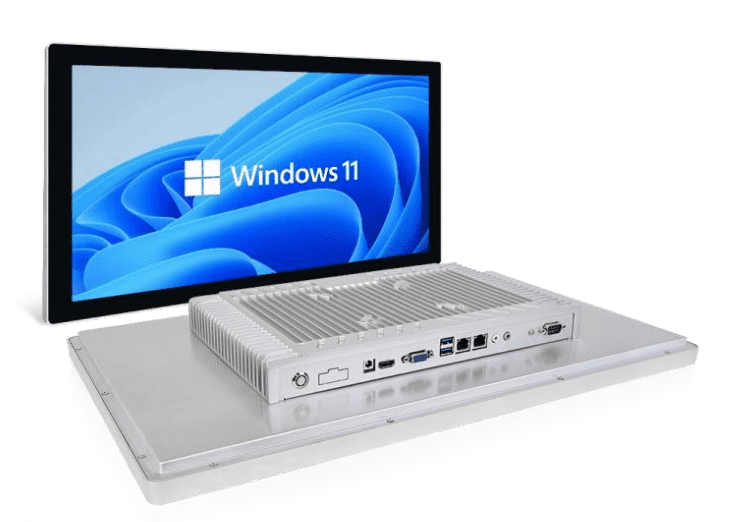

The GK-AL215-WIN 21.5-inch Windows 11 KDS touchscreen PC is designed for restaurant point of sale (POS) and kitchen display systems (KDS). It features a built-in RJ45 port for Ethernet LAN connections, along with dual-band WiFi and Bluetooth for wireless connectivity. You can power it using the provided AC adapter and connect via Ethernet LAN or WiFi.
Constructed with an aluminum alloy casing, the GK-AL215-WIN offers excellent anti-corrosive properties and heat dissipation, making it suitable for hot kitchen environments. The front of the unit is IP65-rated to withstand grease and oils. The touchscreen supports Windows 11.
For OEMs, this model can be customized and branded/white labeled. We can create a custom ROM with your application that can be launched in kiosk mode or boot straight into the app.
This 21.5-inch Windows KDS touchscreen PC supports 100×100 VESA. You can use any commercially available VESA mounts for mounting the unit on wall, desktop or on ceiling.
Call us or email us support@geekland.co for OEM inquiries, customization and wholesale pricing.
Features
- Main CPU : J6412 (standard) other CPU configurations I5 and I7 are optional
- Display : 21.5″ (inch) IPS
- Resolution : 1920*1080 pixels (Optically Bonded display)
- RAM : DDR3 8GB
- Flash : 128 GB
- OS : Windows 11
- Bluetooth : Yes
- Mini USB OTG / USB Host 2.0
- Camera : Front: 5.0 MP (optional)
- PoE: 802.3 at
- VESA: 100x100mm
- Installation Options: Wall Mount ( In-wall and on-wall ), desk mount, pole mount, shelf mount
- Case: Aluminum Case offers excellent heat dissipation
Optional OEM services
- Kiosk Mode
- Auto-start Application
- OEM Logo/Branding
SPECIFICATIONS
| SKU | GK-AL215-WIN |
| CPU | J6412/N100/Core i3 or i5 (6th – 12th), processor speed: 2.8-3.8 Ghz |
| RAM |
8GB DDR3 |
| ROM | 128 GB |
| GPU | Quad core Mali 400 |
| OS | Windows 11 |
| Screen Size/Type | 21.5″ LG IPS Optically bonded |
| Touch panel | Capacitive |
| Resolution | 1920×1080 brightness 350 Nits |
| AUDIO | Built-in stereo speaker 2 X 3W |
| SD SLOT | 1 |
| HDMI | 1.4a |
| USB | Mini USB OTG / USB Host 2.0 |
| EAR JACK / MIC | 1 |
| DC POWER JACK | 1 |
| RJ-45 | 10/100 Ethernet RJ45 |
| PoE (Power Over Ethernet) | 802.3at |
| WIFI | Wireless LAN 802.11 b/g/n dual band |
| Bluetooth | 4.0 |
| Camera | Front: 5.0 MP (optional) |
| Mounting Options |
VESA: 100x100mm Wall Mount ( In-wall and on-wall ), Desk Mount, Pole Mount, Shelf Mount, Ceiling mount |
| Item Dimensions | 528mmx319mmx59mm |
| Power Supply / Charger | Wall charger (100-240V 50-60Hz 12v 2A) |
| Warranty | 3 years |
